Stainless Steel Steam Heating Bottle Label Shrink Sleeve Heat Tunnel
Bottle Label Shrinking Tunnel
- Overview
- Recommended Products
Machine description:

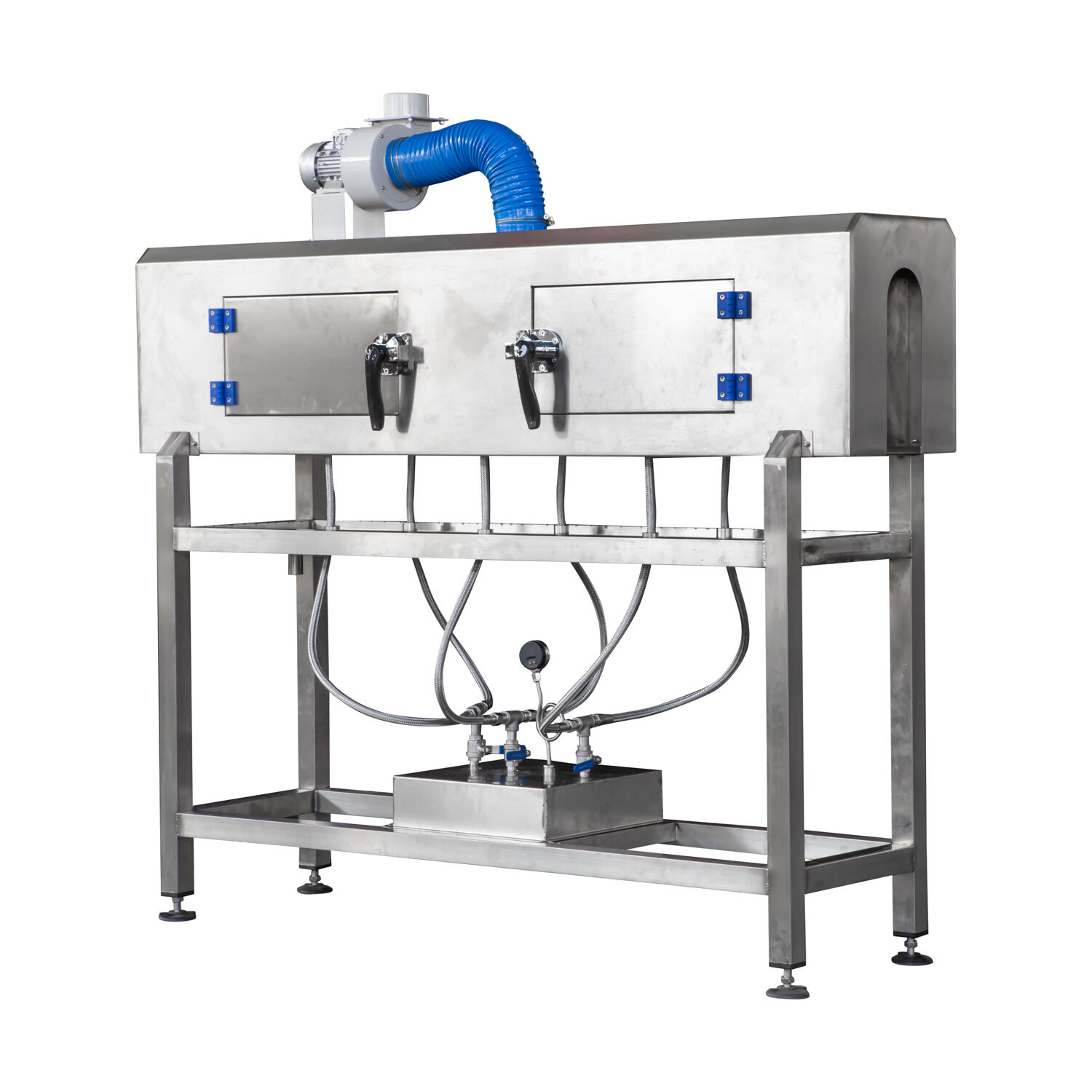

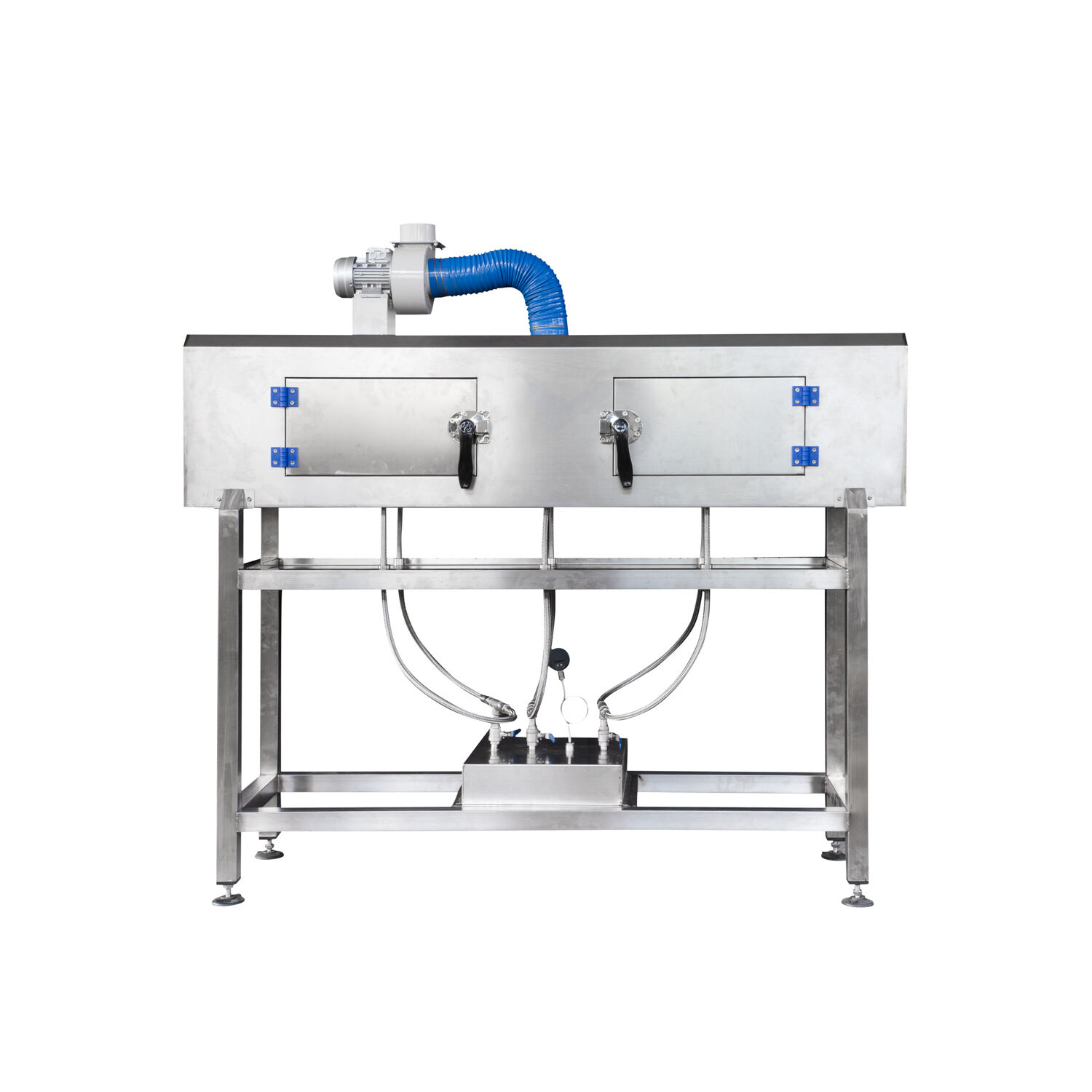

Steam shrink tunnel is a channel for label shrinking of bottles, cans etc. It should be connected with steam generator, the labels sleeved on bottles by manual or by automatic labeling machine will be shrinked after go through the tunnel.
There are two units steam jet pipes each side( three units needed according to bottle shape and label size), which can move up and down and side to side to get perfect shrinking effect.
Stainless steel tray can collects condense water, avoid water flow to ground.
Main Technology Parameter:
Square tube specification |
SUS304, 50*50*1.5MM |
Stainless steel sheet specification |
SUS304, δ=1.5MM |

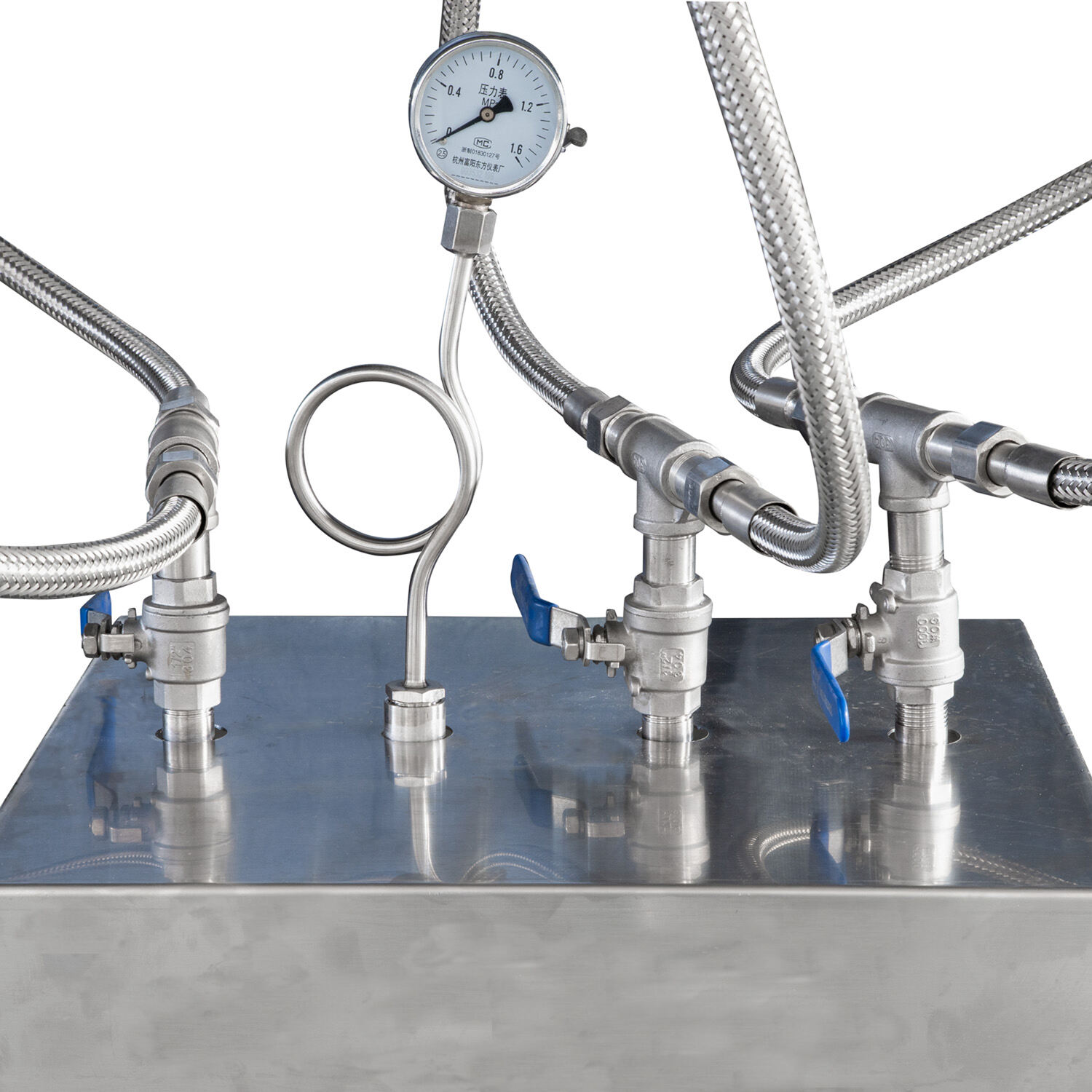

Steam storage tank |
3MM thick stainless steel |
Steam jet pipes |
6PCS |
Steam pressure regulating valve |
6PCS |
Pressure gauge |
1PCS |
Drain valve |
1PCS |
Working Pressure |
≤0.1Mpa |
Exhaust fan power |
0.18Kw |
Weight |
130Kg |
Overall dimension |
L1800*W500*H1600mm |
