Introducing, the Mars 6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line, the perfect solution for all your fruit juice bottling needs. This innovative machine line is designed to easily and efficiently produce high-quality fruit juice bottles at a rate of 6000 bottles per hour.
The Mars 6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line is equipped with state-of-the-art technology that ensures precision and accuracy throughout the bottling process. From filling to capping, this machine line is designed to maintain the integrity of your fruit juice and prevent any contamination.
One of the key features of the Mars 6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line is its versatility. This machine line is capable of bottling a wide range of fruit juices, including orange juice, apple juice, grape juice, and more. With adjustable settings and customizable options, you can easily tailor this machine line to meet your specific production needs.
In addition to its high-speed production capabilities, the Mars 6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line is also incredibly easy to use. The user-friendly interface and intuitive controls make it simple for operators to set up and run the machine line with minimal training.
Safety is always a top priority when it comes to food production, which is why the Mars 6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line is built with top-quality materials and meets all industry standards for sanitation and safety. You can trust that your fruit juice bottles will be produced in a clean and sterile environment, free from any contaminants.
Whether you are a small juice producer looking to expand your operations or a large-scale manufacturer in need of a reliable bottling solution, the Mars 6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line is the perfect choice. With its high-speed production, versatility, ease of use, and safety features, this machine line is guaranteed to streamline your production process and deliver top-quality fruit juice bottles every time. Upgrade your bottling operation with the Mars 6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line today
6000BPH Manufacture Complete Fruit Juice Bottling Production Machine Line

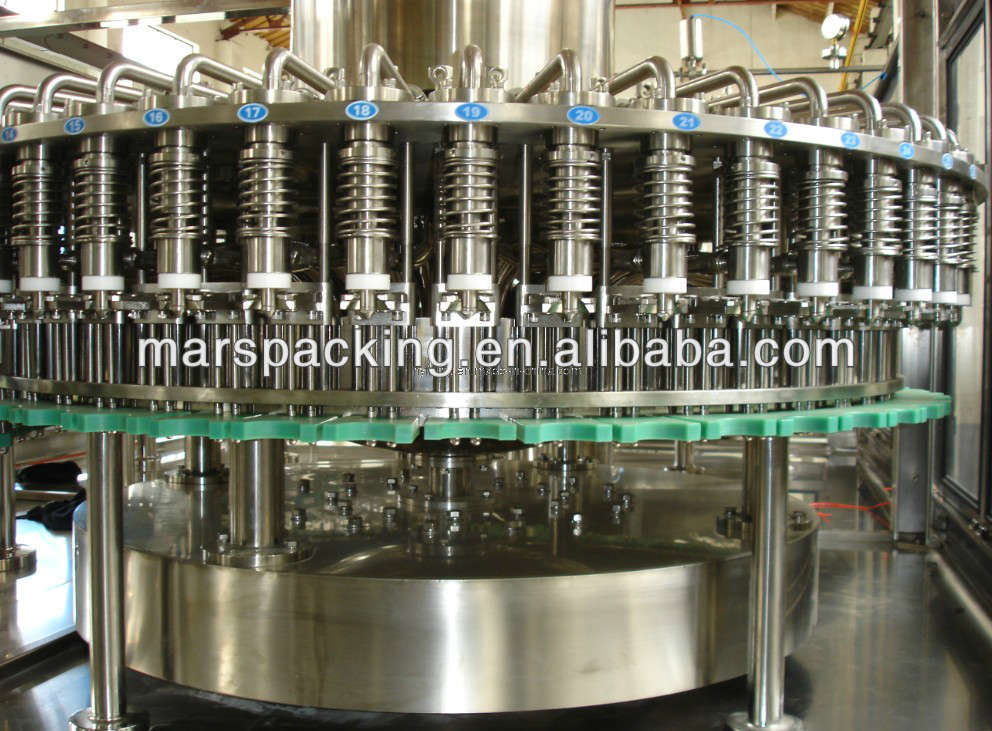

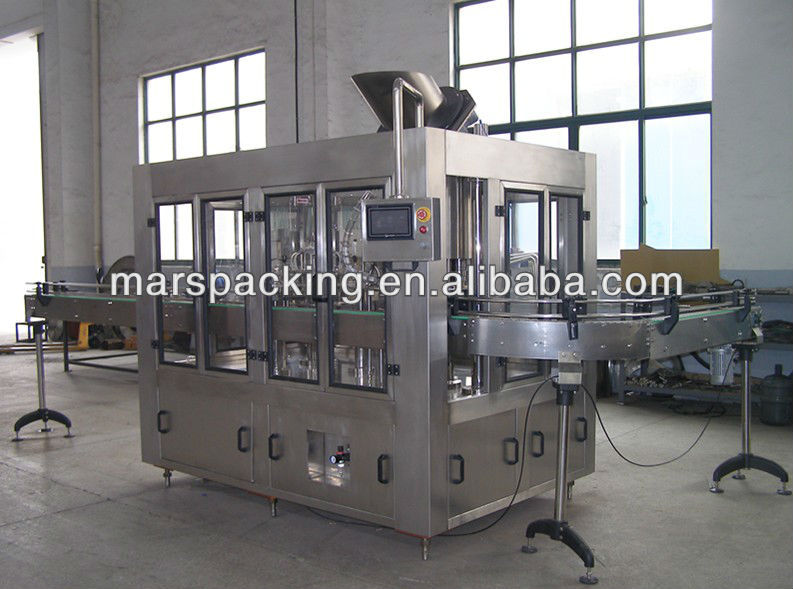

Aseptic Filling Machine composes washing, tea filling and capping in one unit. The machine is automatically applied to fill the tea in the PET bottle. This machine is made up by high quality SUS304 material, the main parts is used numerical control machine precision finishing. The main machine is used developed electric light to exam the working condition of all parts with high automatically filling an capping all bottles and human computer interface operation screen
Features for Fruit Juice Production Line Machinery :
1. The washing, filling and capping 3 kinds of jobs will be finished just by this one machine.
2. It is very convenient to change sizes of bottles by means of advanced bottleneck clamping & bottle suspending technology
3. It is equipped with temperature control system, the filling temperature can be set. When the supplied material temperature is higher of lower than the set one, it will auto stop. When the material temperature is lower than the set one, the material will be conveyed to the circulate system to treat it again to ensure the set temperature in filling
4. Advanced programmable PLC is equipped to control the main machine
5. Working speed can be adjusted by frequency conversion device
6. Main electronic components are all from famous international enterprises
7. The liquid level is correct and the filling characteristics are steady
Technical Details for Fruit Juice Production Line Machinery :
Model |
RCGF14-12-5 |
RCGF18-18-6 |
RCGF24-24-8 |
RCGF32-32-10 |
RCGF40-40-12 |
RCGF50-50-15 |
Washing No |
14 |
18 |
24 |
32 |
40 |
50 |
Filling No |
12 |
18 |
24 |
32 |
40 |
50 |
Capping No |
5 |
6 |
8 |
10 |
12 |
15 |
Production Capacity - 500ml |
3000BPH |
6000BPH |
9000BPH |
12000BPH |
18000BPH |
22000BPH |
Install Capacity - KW |
3.5 |
4 |
4.8 |
7.6 |
8.3 |
9.6 |
Overall size |
2450×1800×2400 |
2650×1900×2400 |
2900×2100×2400 |
4100×2400×2400 |
4550×2650×2400 |
5450×3210×2400 |
